Product Details:
Name: Forged Floating Ball ValveCatalog: Ball Valve
Certification: API6D-CE-ISO-API607
Contact Details:
Contact Person: Sales Manager
Email: info@seekovalve.com
Tel: 0086-577-67312948
Fax: 0086-577-67312948
Seeko is one of the leading China Forged Floating Ball Valve manufacturers, welcome to inquiry Forged Floating Ball Valve from our factory.

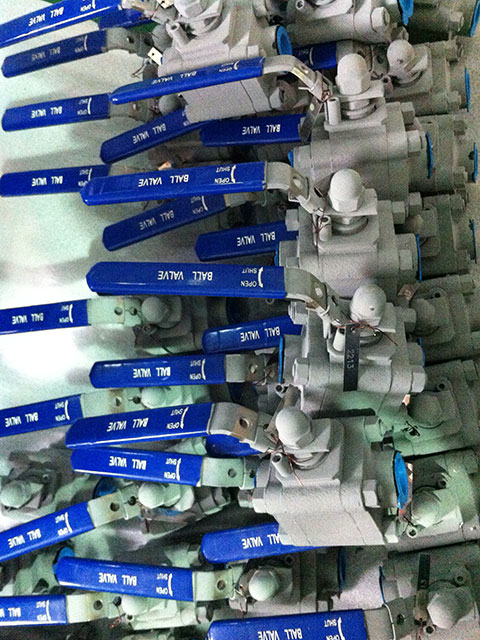

FORGED FLOATING BALL VALVE DESCRIPTION
2 / 3 pieces bolted body design.
They are manufactured in a wide range of sizes and pressure classes typically from forgings.
BASIC CHARACTERISTICS
API 6D, ISO 17292 design
Full Bore and Reduced Bore design
Flanged, Welding, Threaded Ends
Anti blow‐out stem
Anti static device
Fire safe design
PRODUC TRANGE
Size: 1/2” to 6”
Pressure Classes: ASME 150# to 2500#
Temperature Range: ‐196°C to 250°C
DESIGN FEATURES
Soft Seating Standard
Metal Seating On Request
Manual operated or Actuated Standard
Stem Extension On Request
Extended Bonnet On Request
Welded Pups / Nipples On Request
MATERIAL SELECTION
BODY, CLOSURE
– CS (ASTM A105,A182 F11,A182 F22),
LTCS (ASTM A350 LF2,LF3,12Mn)
– High strength LTCS (A694 F52, F60, F65)
– Austenitic SS (ASTM A182 F304, F316,F321)
– Duplex SS 22% Cr (ASTM A182 F51)
– Superduplex SS 25% Cr (ASTM A182 F53/F55)
– 6Mo SS (ASTM A182 F44)
– Inconel 625
– Incoloy 825
– Monel
BODY SEALS / SEAT SEALS
– Viton A FKM O‐ring
– Viton GLT FKM O‐ring
– Viton AED FKM O‐ring
– HNBR AED O‐ring
– FFKM O‐ring
– PTFE Seals
– Graphite Packing / Gaskets
TRIM (SEAT, BALL and
STEM)
– CS (ASTM A105), LTCS (ASTM A350 LF2) + ENP0.003”or overlay on request
– AISI 410 Martensitic SS (ASTM A182 F6a)
– 17‐4 PH –
Austenitic SS (ASTM A182 F304,
F316)
– Duplex SS 22% Cr (ASTM A182 F51)
– Superduplex SS 25% Cr (ASTM A182 F53/F55)
– 6Mo SS (ASTM A182 F44)
– Inconel 625
– Inconel 718
– Incoloy 825
– Monel
SEAT INSERT
– PTFE / RPTFE
– Nylon / DEVLON V
– PCTFE / KEL‐F
– PEEK
– METAL with either TUNGSTEN CARBIDE or CHROMIUM CARBIDE COATING (0.15 mmmin. thk.)
BOLTING
– ASTM A193 B7/B7M, ASTM A320 L7/L7M,
– A193/A320 B8/B8M
– UNS S31803, UNS S32760, ASTM A453‐GR.660
